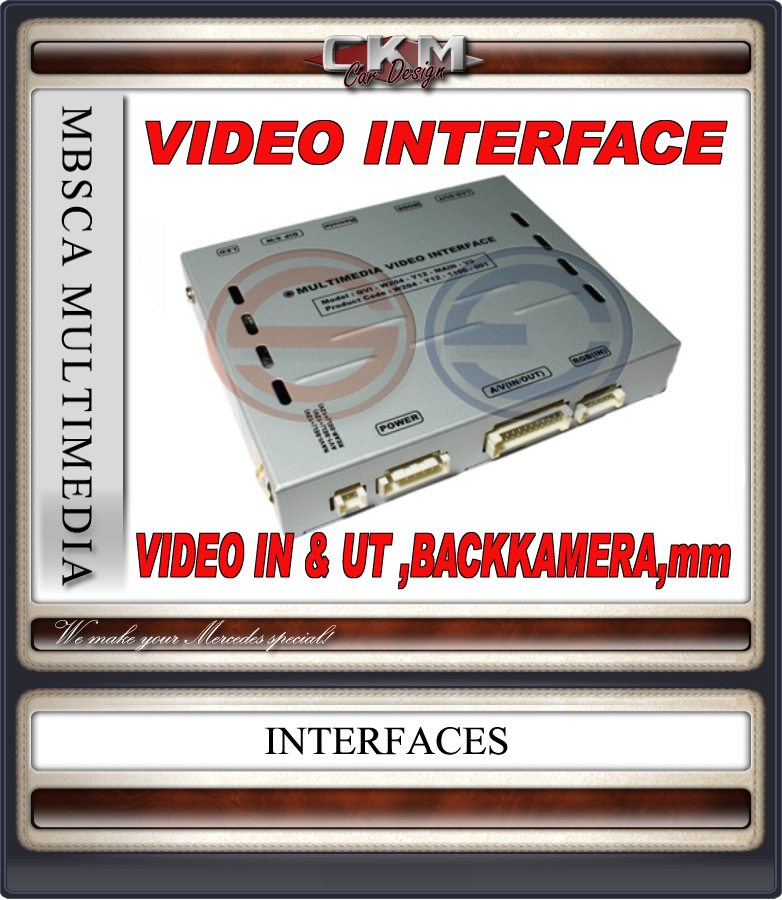

C. VIDEO INTERFACE 2004-2005

W221 Interface Passar:

W220 2004-2005

Car video interface allows connecting external video sources, such as DVD player, TV tuner, rear view camera, etc. to build-in car monitor.

Car Video Interface for Mercedes-Benz

•Mercedes-Benz W220 2004~2006 (S-Class)
•Mercedes-Benz C215 2004~2007 (CL-Class)
•Mercedes-Benz SL-Class with 6.5" monitor 2004~2007

Technical Specifications

•Input: multi video interface

◦Analog RGB (sync on Green) x 1

◦CVBS input (rear camera source): x 1

◦A/V input (NTSC & PAL) x 3

◦LCD input (car system input) x 1

•Output

◦CVBS output (video output for headrest monitors) x 2

◦Audio select output 3-in-1

◦LCD output x 1

•Power

◦Input power: 8 V DC ~ 24 V DC

◦Max. consumed power: 12 W

•Mode switching

◦by 'SET' button of the OSD keypad;

◦by toggle switch (option);

◦by 'Navi' button of the car through CAN (for W221 : Navi Button / for W204 4″, 7″ : Return Button);

◦Possible to skip AV source by DIP S/W.

•Board dimensions: 147 mm × 104 mm × 24 mm
